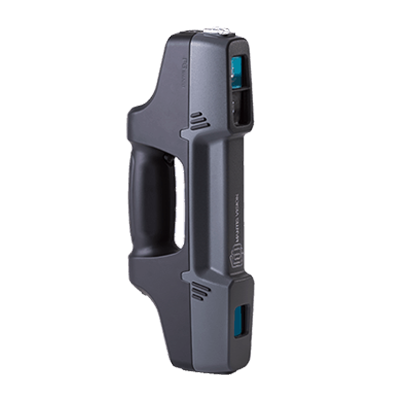

Mantis Vision F6 Smart Scanner

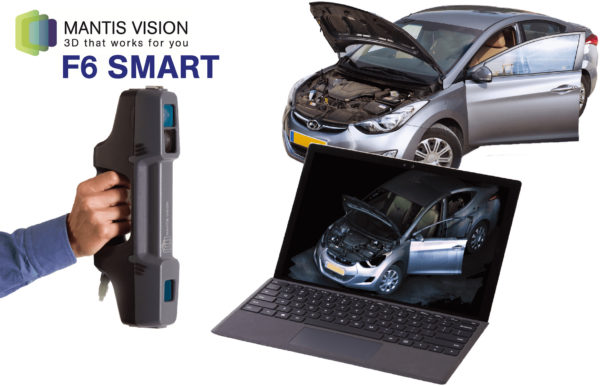

MantisVision F6 In Action

Mantis Vision F6 Smart (Dealer Demo)

Portable 3D handheld scanner

Suitable for a wide variety of uses and applications such as:

  • Technical room scanning
  • Reverse engineering
  • Reconstruction, manufacturing, and maintenance
  • As-built documentation
  • Forensics
  • Modeling for CGI

The Mantis Vision F6 Smart (Dealer Demo) is available with manufacturer quick-start online training.

Bloom Cloud Engine and Nubigon discounts are available when purchased with Dealer Demo.



SKU: MV-F6-DEMO Categories: ,

Description

Specifications:

  • Working range: 0.5m to 4m (20″ to 14′-0″)
  • Accuracy: 500 micron
  • Depth resolution: 1mm (1/25″)
  • Linear field of view @ closest: 510 x 670 mm (20″ x 26″)
  • Linear field of view @ farthest: 4585 x 6060 mm (15′-0″ x 20′-0″)
  • Color camera resolution: 1.3 MPix
  • Frame rate: 8 FPS
  • Data acquisition speed: 640,000 points/sec
  • Weight: 1 kg (2.2 lbs)
  • Powered by Mantis Vision Echo Software

Want more from your point clouds? Ask about Bloom Cloud Engine and Nubigon. Discounts are available when purchased with Dealer Demo.
