One of the leading non-contact laser measurement technology companies, Zoller+Fröhlich, pairs its visionary ideas with down-to-earth know-how. A German-based, family-owned business with a wealth of project experience, Z+F is known for producing quality products and establishing worldwide industry standards in 3D laser scanning innovation. As pioneers of scanning technology since the mid-1990s, their 3D terrestrial laser scanners, are designed to perform in the most demanding environmental conditions, bringing reliability and high measuring accuracies to even the most challenging projects.



Showing all 7 results



High precision, modern technology with ergonomic features



  • Excellent data resolution in a wide range of challenging environments, including underground, in the desert, accident sites, and oil platforms
  • Suitable for a multitude of applications such as Industry, Construction, Asset Management, Forensics, and Mining
  • Ability to reduce project times by up to 40%
  • Efficient and easy to use, decreasing time spent collecting data and reducing overall project costs
  • Compatible with most 3D software applications for data processing
  • Award-winning, continuously evolving technology

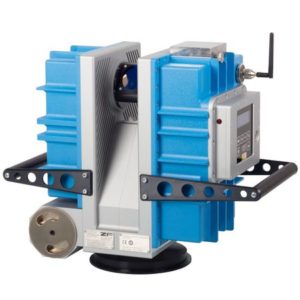

Zoller+Fröhlich developed the first ATEX-approved, explosion-proof scanner, expanding the surveying capabilities of underground mining and industries where explosive atmospheres occur. Designed as a stand-alone device, the Z+F IMAGER® 5006EX guarantees independence and flexibility. No external devices are required to operate the scanner in the field, excluding the need for ignition sources in potentially explosive environments. In addition, an extended field of view enables complete documentation of an extensive scan area with relatively few scan positions.

  • Explosion-proof
  • 100% stand-alone operation
  • No external devices required for operation
  • Extended field of view – 310o vertically and 360o horizontally
  • Nominal range of 79m

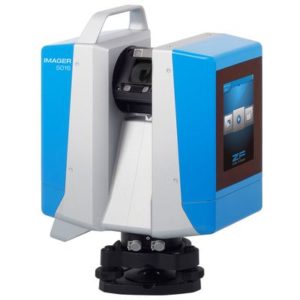

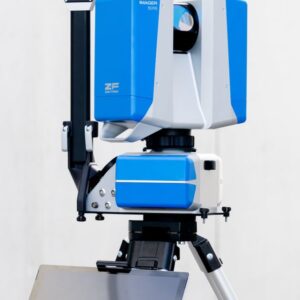

Z+F IMAGER® 5016A

Combining compact, lightweight design with state-of-the-art 3D laser scanning survey technology, the Z+F IMAGER® 5016 lets users take detailed and precise scans. With a newly redeveloped design resulting in better scanning outcomes and a more efficient workflow, the 5016 expands the available application areas.

  • Integrated high dynamic rate (HDR) camera equipped with internal lighting eliminating the need for external light sources in dark environments
  • Built-in positioning system offers real-time registration in the field
  • Integrated 5.7” touchscreen control panel with color display
  • Color information recorded in only 2 minutes
  • Internal storage capacity of 128 GB
  • Data transfers quickly via SD card slot, ethernet connection, or WiFi
  • Newly designed casing facilitates assembly on tall tripods and overhead applications



The Z+F PROFILER® 9020C is the world’s first mobile 2D laser scanner with integrated cameras. Its non-contact technology generates colored point clouds without external cameras, provides detailed documentation, and can be used remotely and in harsh environments or hard-to-reach areas.

The 9020C has four integrated cameras, each with 5 MPx, which cover the entire 360° scanning area at a distance of 40 cm. The recordings have high color fidelity and a high dynamic range. Significant differences in light conditions are compensated in such a way that the processing of the images afterward takes a short time or is completely eliminated. Shaded or overexposed areas can hardly be seen in colored 3D representations.

  • 4 integrated cameras
  • Fully calibrated system
  • Rotation speed 267 Hz or 16,020 rpm
  • Measures over 2 million pixels/sec.
  • Accurate to 0.2mm in the range between 1m and 25m
  • Max range of 182 m
  • 360° field of view
Technical SpecificationIMAGER 5010IMAGER 5016AIMAGER 5006EX
LaserClass 1
Class 1Class 3R
Protection ClassIP 53IP 54IP 53
Explosion ProofXXYes
Range0.3m to 187m0.3m to 365m
0.4m to 79m
Field of View320 x 360320 x 360310 x 360
Data Acquisition Rate1.016 million pixels2.187 million pixels508,000 pixels
ProcessingPostReal-TimePost
Scanner Weight9.8kg6.5kg30.6 kg
Scanner Dimensions170 x 286 x 395 mm150 x 258 x 328 mm250 x 395 x 414 mm
Internal Data Storage64 GB128 GB60 GB
Lighting ConditionsFrom bright sunlight to pitch darknessIndependent of lighting conditionsAll conditions - unrestricted
CameraXIntegrated HDR Camera
X

Z+F Laser Scanning Software Applications

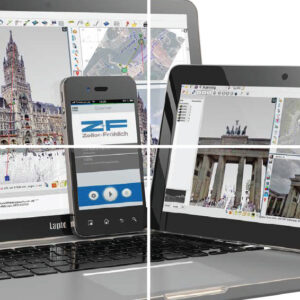

Z+F LaserControl Office® and Scout offer a range of filter and measurement tools efficiently processing scan data and producing clean, registered, color, 3D point clouds. In addition, their extensive export formats allow for further data processing in most 3D software applications.

Optimal solutions for working with Z+F scanners



  • Focus on flexibility, data security, and efficiency
  • Register, check, process, and evaluate point clouds in real-time
  • Immediate visualization recognizes problems in the project allowing for prompt intervention
  • Verification of data quality and quantity
  • Process high-resolution HDR and thermal panorama images

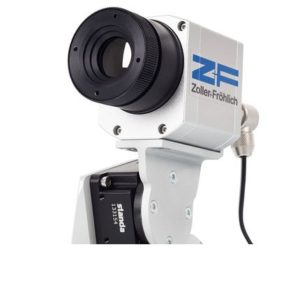

  • Compatible with i-Cam, T-Cam, M-Cam, and external camera systems

Z+F Scantra® Beyond Clouds is a software program developed to automatically register laser scan point clouds based on identical planes and points. Created specifically for processing substantial projects with hundreds to thousands of scans, Scantra works with very high accuracy. Typical applications are as-built documentation, construction progress monitoring, or deformation measurements. Scantra is the only software program on the market that meets engineering Geodesy’s high demands, providing detailed and meaningful quality measures.
